AB IPBox TWO 4K UHD Android 8.0 Sat IP Receiver (2x DVB-S2X, Dual WiFi, LAN, CA, Bluetooth, HDMI)

The AB brand has managed to put everything users want in one device. With IPBox TWO you can enjoy satellite reception and have an Android media center with the ability to install your favorite apps on one device.

Features
- Android 8.0 operating system
- 4K Ultra HD resolution (60fps)
- ARM Cortex A53 quad-core processor
- Smart card reader, dual-band WiFi, Bluetooth, LAN
- 2x DVB-S2X satellite tuner (LNB-In)
- 2GB DDR4 RAM & 16GB Flash
- TFT LCD display
- MicroSD-Slot

The AB IPBox TWO marks the beginning of a new generation of 4K receivers. With the IPBox TWO, you get a very powerful receiver with dual-band WiFi and a quad-core processor, whose features and functions provide an LCD display, smart card reader, and several apps!

The AB IPBox TWO runs on the Android 8.0 operating system and brings some innovations, such as its powerful ARM Cortex-A53 processor. In addition, the IPBox TWO has a new and powerful Mali T450 GPU, as well as 2GB DDR4 RAM and working memory with 16GB eMMC 5.0.

The AB IPBox TWO receiver has numerous interfaces for uncomplicated integration and connection to existing devices (e.g. your home cinema system). External storage devices such as B. USB sticks, connect the IPBox TWO to either a USB 2.0 or USB 3.0 port. The IPBox TWO receiver also has an HDMI connection and a 10/100 Mbit Ethernet LAN connection.

Technical Info
- 4K UHD resolution (3840x2160p)
- Android 8.0 Oreo operating system
- ARM Cortex A53 Quad-Core 64bit CPU, Mali T450 GPU
- 16GB eMMC 5.0 & 2GB DDR4 RAM
- Demodulation QPSK & 8PSK
- UHD 4K UHD (60fps), 10bit
- HEVC H.265, HDR10, HLG
- 1.77 inch TFT LCD
- 12Vdc / 1.5A output voltage
- Power consumption in standby mode <0.5W
- AC 90~250V, 50/60HZ input voltage
- F-Type Female(Si-Labs SI2166) Support S2X
- 4:3, 16:9, Letter Box, Pan & Scan video format
- Diseqc control version 1.0, 1.2, USALS compatible
- ITU-T H.265/HEVC & H.264, ISO/IEC 13818-2 MPEG-2 AVS&AVS+, VP6, VP8, VP9
- WiFi antenna (IEEE 802. 11b/g/n/ac, 2.4/5G Dual Band(2T/2R))
- LNB power and polarization Vertical : +13.5V ± 0.5V Max 400mA
- 22KHz Tone Horizontal : +18.5V ± 0.5V Max 400mA, Frequency: 22KHz ± 4KHz, 0.6Vp-±p0.2Vp-p
- MPEG I& II, MP3, Dolby Digital Plus, AAC-LC, HE-AAC V1/V2
- Operating Temperature 0 - 45 °C
- Storage Temperature -10 - 70 °C

Dimensions & Weight
- Size (WxDxH): 170 x 100 x 46 mm
- Weight: 700g

Connections & Connectivity
1x HDMI
1x USB 2.0
1x USB 3.0
1x S/PDIF (optical)
1x Smart Card Reader (CA)
1x Ethernet (10/100Mbits)
2x LNB-In (DVB-S2X Satellite Tuner)
1x DC Connector (12V)
- 2.4/5G dual-band WiFi (WLAN)
- Bluetooth 4.0

Delivery
1x AB IPBox TWO 4K UHD Android 8.0 (2x DVB-S2X) Satellite IP Receiver, black

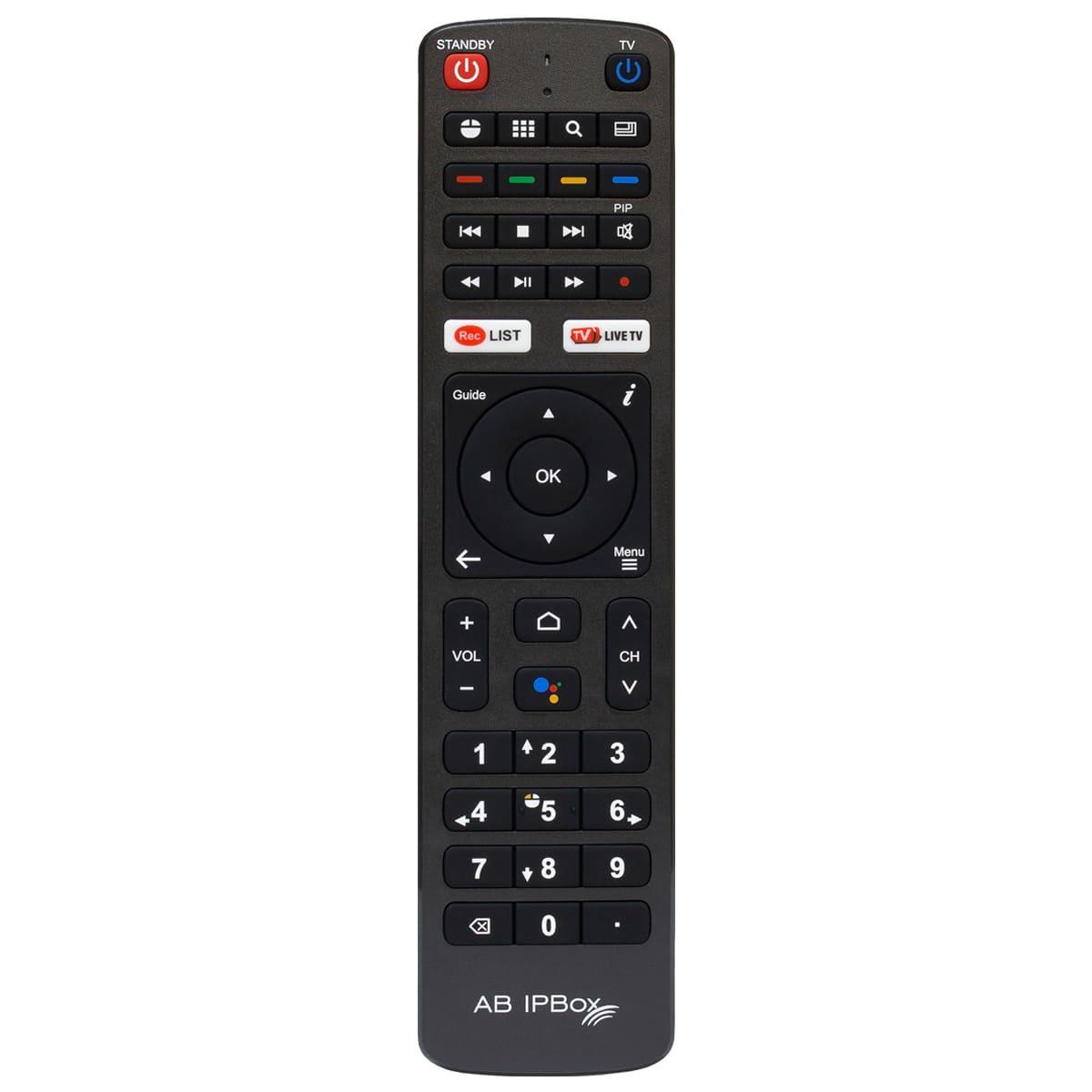

1x Remote Control
1x User Manual
1x Power Adapter
1x HDMI Cable
2x Batteries (AAA)
