Anadol Gold Line 17/16 Multiswitch (for 4 Satellites & 16 Participants, +33 Gold-Plated F-Plugs)

Compact multiswitch in a stylish housing. The Anadol Gold Line multiswitch 17/16 - with highly integrated high-frequency components in combination with proven device mechanics ensures a balanced product at an excellent price-performance ratio.

Due to its small design, it fits into even the smallest corner in the attic. The Anadol Gold Line 17/16 multiswitch is suitable for receiving 4 satellites and for up to 16 participants. A satellite receiver or a TV set with an integrated tuner can be connected to each of the 16 outputs. (All 16 participants can watch all programs independently of each other.)

Features
- mounting feet
- Terrestrial passive
- External power supply
- Gold-plated F connectors
- HD, HD +, SKY, 4K, UHD-compatible

Reception is only possible with a Quattro LNB. Feeding of a DVB-T / T2 antenna or a broadcast antenna (radio: DAB / DAB + / UKW / FM) is possible.

Technical info
- Number of inputs: 16x satellite 1x terrestrial
- Participant exits: 16
- Frequency range SAT / IF: 950 - 2200 MHz
- Terrestrial frequency range: 47 - 862 MHz
- Max. Output (SAT): 95 dB
- Max. Output (TERR): 80 dB
- TERR-SAT decoupling: 25 dB
- SAT-SAT decoupling: 25 dB
- TERR attenuator: 0 - 15 dB
- Impedance: 75 ohms
- Power supply: 100-240V AC 50 / 60Hz - 12V DC / 1.6A
- Dimensions: 32.5 x 20.0 x 4.5 cm
- Weight without packaging: 870 g
- Weight including packaging: 1400 g

Delivery

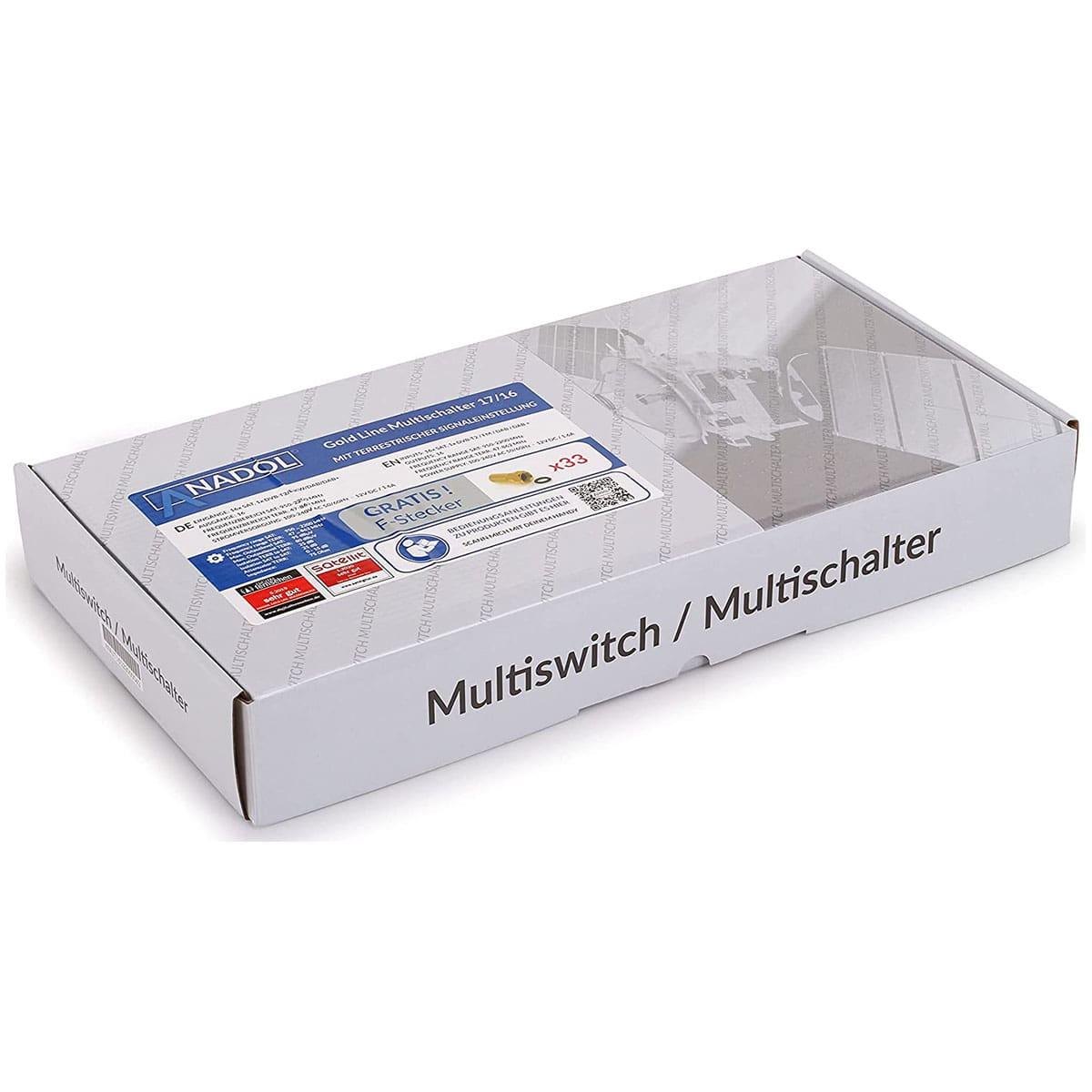

1x Anadol Gold-Line 17/16 multiswitch with mounting feet
1x external power supply
33x gold-plated F connectors
1x quick guide (De & En)
