AX Digital Quattro LNB Mimic Sun Protect 0.1 dB 4K UHD LTE Filter for Multiswitches

The new AX Mimic Sun Protect Quattro LNB with only 0.1dB noise figure, LTE filter, gold-plated connections, low power consumption, excellent signal quality, and UV-resistant weatherproof housing is characterized by its top quality.

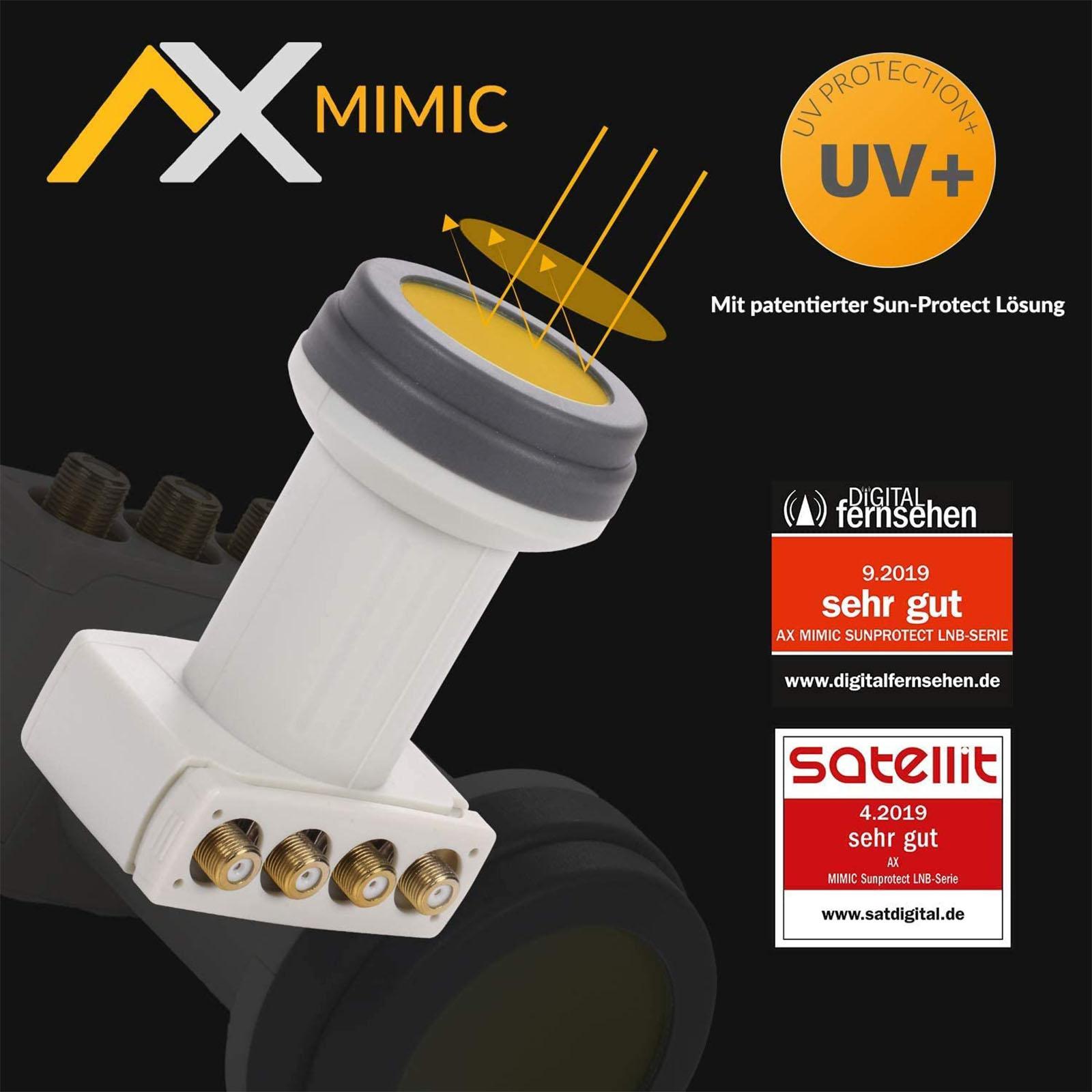

Thanks to the patented SUN Protect LNB cap, this LNB is extremely cold and heat resistant and enables signals to be received from a satellite and distributed to several end devices using a multi-switch. Experience first-class picture and sound quality with this high-quality LNB.

All AX LNBs are checked for quality and functionality.

Features
- extremely cold and heat resistant (-40°C ~ 70°C, can withstand up to 95% humidity)
- gold-plated connections
- low energy consumption
- suitable for 4K/UHD, HD, and SD reception
- excellent workmanship
- Low noise figure
- Low phase noise
- High cross-polarization isolation
- High-frequency stability
- Extendable weatherproof housing
- waterproof (100% tested)

Technical Info
- Input Frequency Range: high-band 10.7 ~ 12.75 GHz
- Output Frequency Range: high-band 950 ~ 2150 MHz
- Consumption (DC): 250 mA (typical)
- Operating Temperature: -40/+ 70°C
- Signal gain: 52 - 67 dB
- Cross Pol. Isolation: 20 dB
- Noise Figure 0.1dB
- Outputs: 4

Delivery

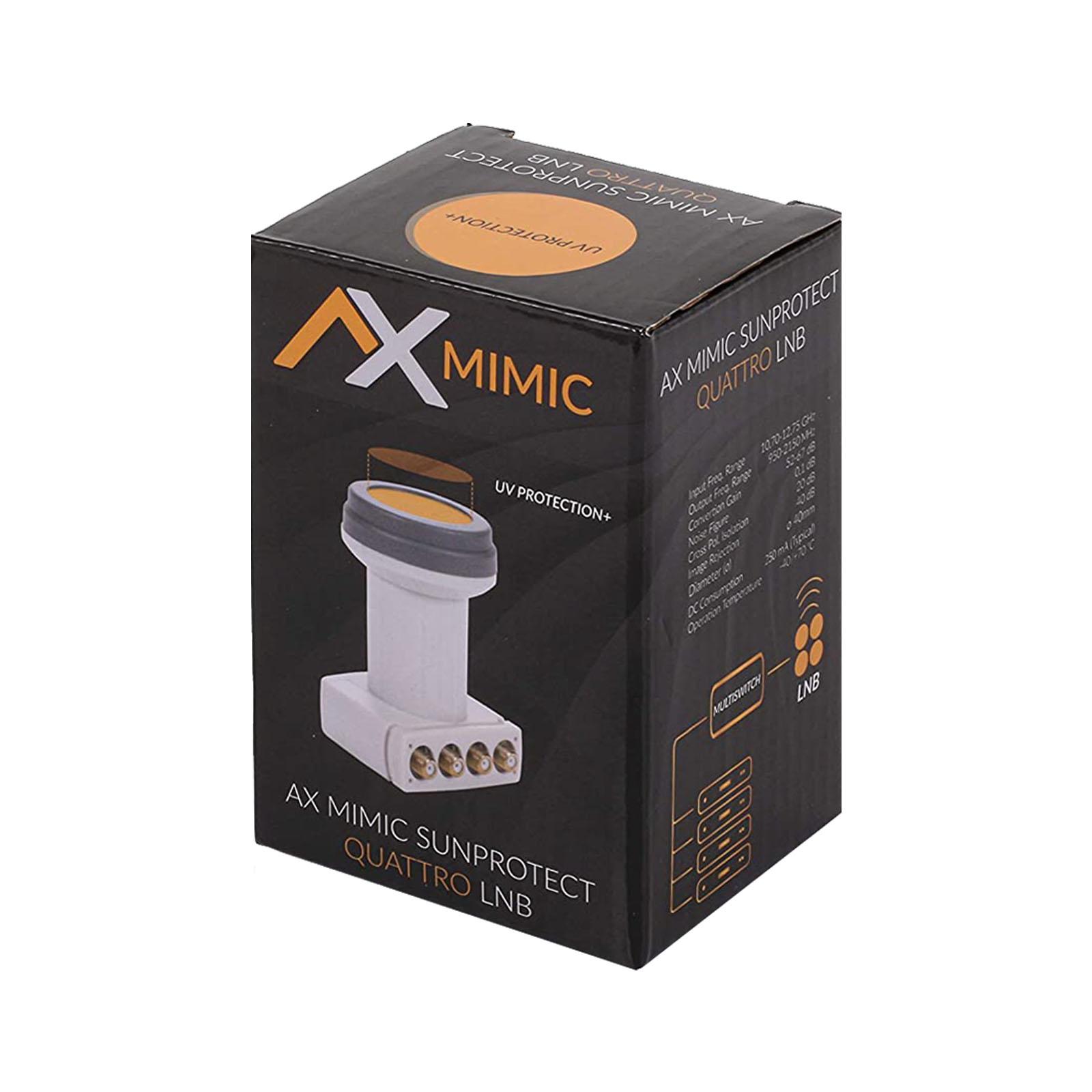

1x AX Mimic Sunprotect Quattro LNB
