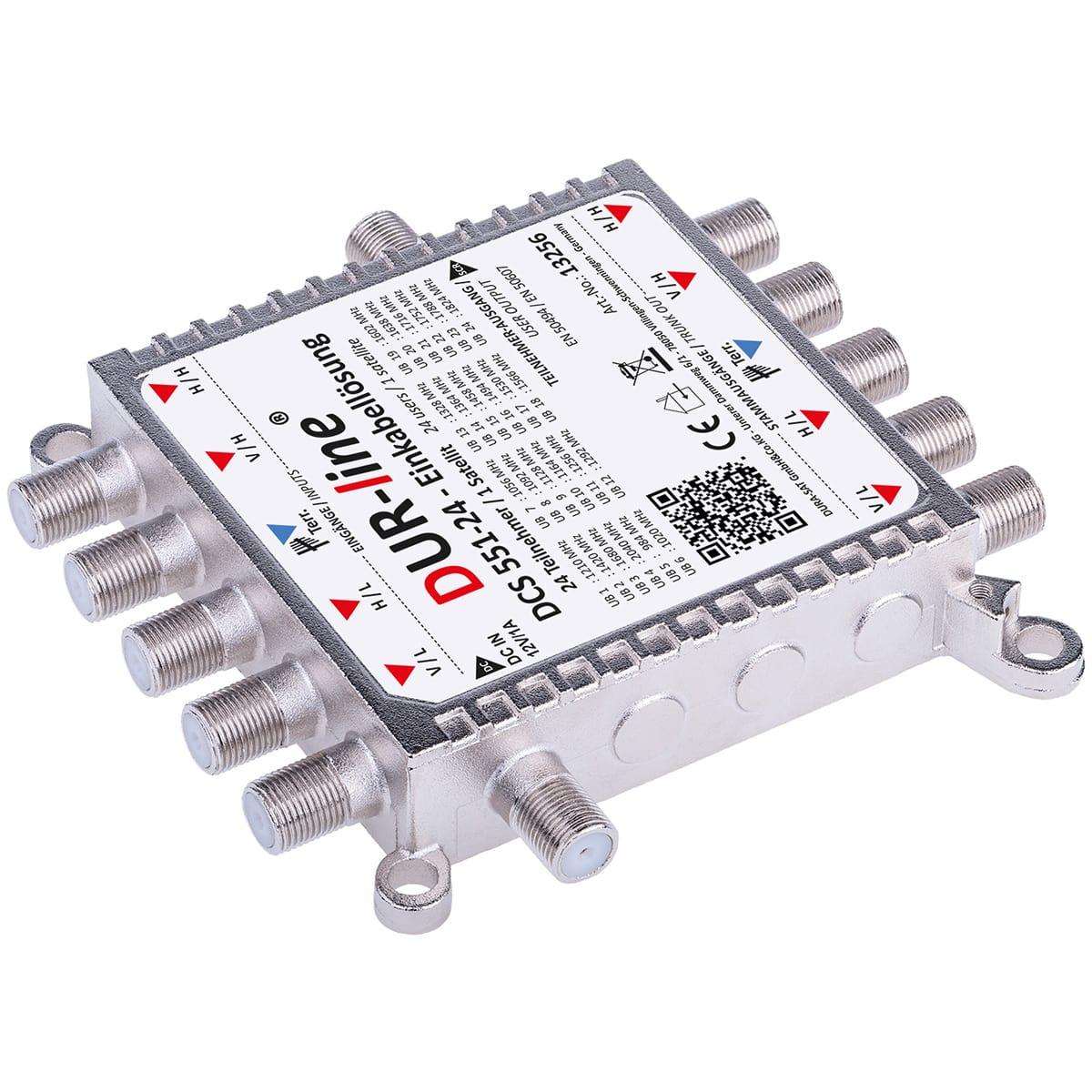

DUR-line DCS 551-24 - Unicable I+II Multiswitch for 24 Participants for Quattro LNB (HD, FullHD, 4K)

The DUR-line DCS 551-24 enables you to use up to 24 satellite receivers with just one coax cable. Any Unicable-compatible receiver or satellite tuner on your television set that complies with the European standard EN 50607 (also called Unicable II, JESS, SatCR, dCSS) can be used for this purpose. If your devices only support the older EN 50494 protocol, up to 8 satellite receivers can be connected. If you want to use more than 24 participants or satellite receivers, you can cascade another DUR-line DCS 551-24. It is also possible to connect an ordinary multi-switch (suitable for Quattro LNB) to the five cascade outputs in order to connect older televisions that do not support Unicable.

A Sat-BK distributor can be used at the SCR output in order to distribute frequencies as required (e.g. 12 + 12, 8 + 16, etc.). All that is needed is the cable from the SCR output to the straight-through socket and from there to the next - to the end of the line and then to an end socket to cleanly terminate the line. This switch can only be used with a Quattro LNB for a satellite - Quad LNBs are not compatible!

Features
- Single cable solution for 24 SCR participants
- Operation with Quattro LNB
- Terrestrial input (DVB-T/DVB-C)
- High quality cast housing
- Expandable through trunk exits
- Can be integrated into existing SAT systems

Technical Details
- Trunk outputs: 4 x SAT (V/L, H/L, V/H, H/H); 1 x terrestrial (UHF/VHF/DVB-T, DVB-T2)
- Oscillator frequency LNB (Oscillator Frequency LNB): Quattro LNB: 9750/10600 MHz
- Trunk output loss: SAT max. 3 dB; Terr.max 4 dB
- Terr. Attenuation at the SCR output (Terr. Loss on SCR output): max. 12 dB
- SAT gain at the SCR output (Satellite Gain on SCR output): typ. 29 dB
- F Isolation Terr./SAT (RF isolation Terr./Satellite): min. 25 dB
- Power consumption: 300 mA max. @ 13.5 VDC max.
- Operating temperature: -20 ° C ... +60 ° C
- Dimensions: 110 x 110 x 21 mm

Participant Frequencies (dCSS frequencys)
- UB 1 = 1210 MHz: 13 = 1328 MHz
- UB 2 = 1420 MHz: 14 = 1364 MHz
- UB 3 = 1680 MHz: 15 = 1458 MHz
- UB 4 = 2040 MHz: UB 16 = 1494 MHz
- UB 5 = 984 MHz: UB 17 = 1530 MHz
- UB 6 = 1020 MHz: UB 18 = 1566 MHz
- UB 7 = 1056 MHz: UB 19 = 1602 MHz
- UB 8 = 1092 MHz: UB 20 = 1638 MHz
- UB 9 = 1128 MHz: UB 21 = 1716 MHz
- UB 10 = 1164 MHz: UB 22 = 1752 MHz
- UB 11 = 1256 MHz: UB 23 = 1788 MHz
- UB 12 = 1292 MHz: UB 24 = 1824 MHz

Delivery
1x DUR-line DCS 551-24 - Single-Cable Solution
1x 230V Power-Saving Power Supply Unit (12V/1A)
1x Instruction Manual
1x Assembly Set (5x Terminating Resistors (DC decoupled) and, Screws)
