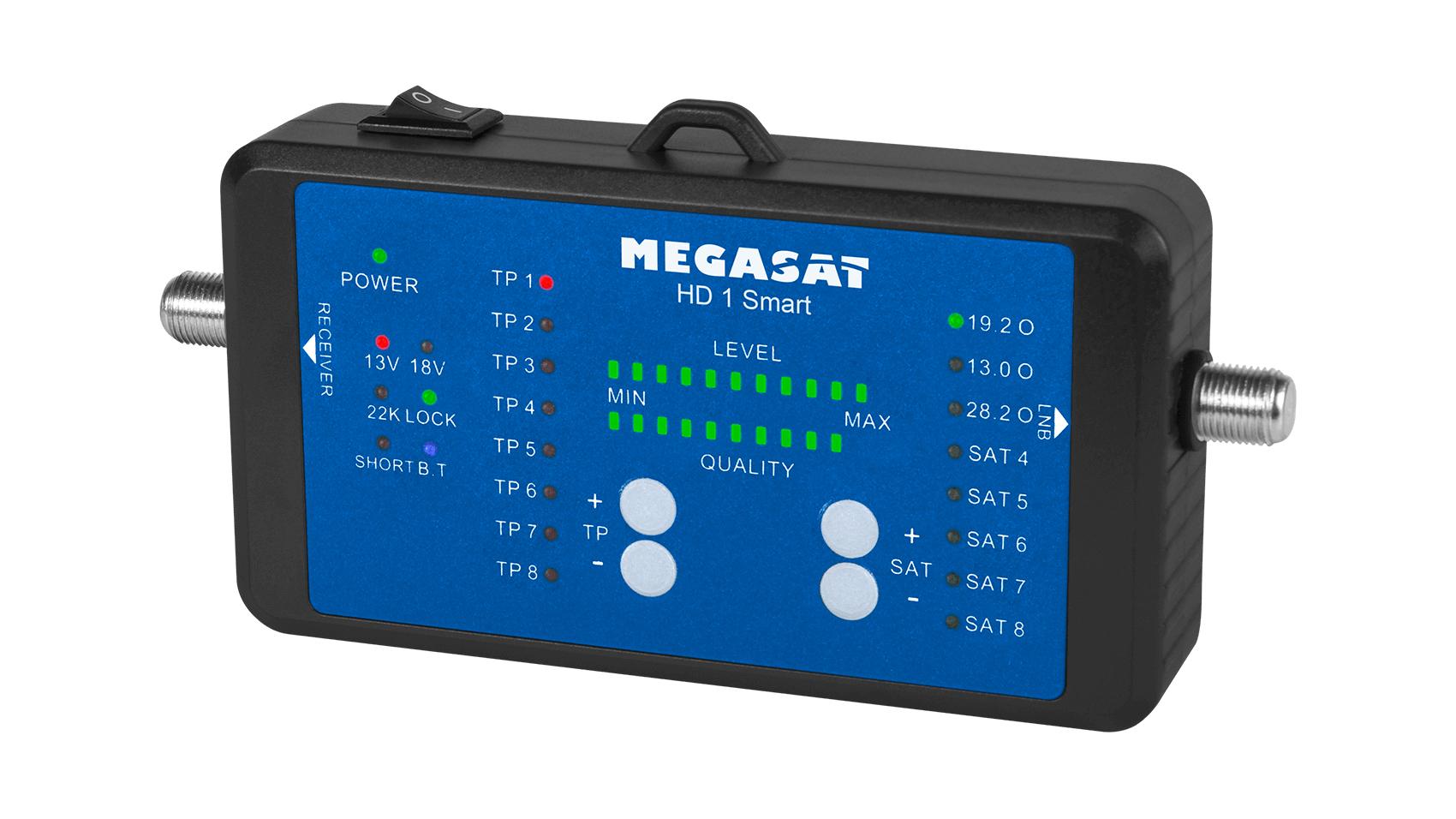

Megasat HD 1 Smart Sat Meter Bluetooth App Control incl. 10.000mAh Powerbank

€94.90 *

plus VAT plus shipping

Free shipping in Germany!

Delivery date unknown

  • MONMES066
Measurement of DVB-S and DVB-S2 with pre-set satellites / transponders. Bluetooth® connection to... more
Measurement of DVB-S and DVB-S2 with pre-set satellites / transponders. Bluetooth® connection to a mobile device. Free App for iOS and Android with additional features like a traditional Satellite meter.

Easy and fast satellite search with Bluetooth® connection
The HD 1 Smart is a satellite finder with all common functions for satellite search. The preset satellites and transponders can be easily selected and facilitate the search considerably. You can immediately assess the signal strength and quality by means of the LED displays and align the antenna comfortably. Through the additional Bluetooth® connection to a mobile device, such. As smartphone, the Sat Finder is enhanced by helpful features.

Extra features on the mobile device
The free app now gives you a spectrum, a constellation, and the dBµV, MER, C / N, and BER indicators to analyze the signal and tune the antenna perfectly. With the mobile device you can now also adapt the satellites and transponders to your needs. Furthermore, you can also use the angle calculation to calculate the vertical (elevation) and horizontal (azimuth) orientation of the antenna. Thus, the desired satellite can be found faster.

Powerbank with charging function and LED flashlight
With the included power bank, you can easily set your antenna without connection to the receiver. The satellite meter HD 1 Smart requires a power supply for operation, which it usually receives from the receiver. With the power bank, they are independent and can power the antenna without a receiver. Charging additional devices such. B. smartphone or tablet is also possible. Use one of the two USB ports for this purpose. With the built-in LED flashlight, the antenna can be aligned even in poor visibility.

Technical specifications:

Measurement of DVB-S / -S2
Display via the mobile device
Optical and acoustic signal level display
LED indicators: 13V, 18V, 22kHz, Lock, Bluetooth®, satellite selection,
Transponder selection, power supply, signal strength and quality
USB port for external power source such as Power Bank
Integrated Bluetooth® module for connection to a mobile device
Preset satellites: 8
Preset transponder: 8
power switch
Power supply via receiver or power bank
1x micro USB port
1x F-connection (input)
1x F-connection (output)
Additional features via the mobile device
DiSEqC 1.0 / 1.1 / 1.2 / USALS
Auto DiSEqC function
Unicable I & II (EN50494 / EN50607)
Constellation and spectrum analysis
Angle calculation of azimuth and elevation
Processing of satellites and transponders
Indicators: PWR / C / N / BER / signal strength and quality
Compass and motion sensor

Power Bank
Lithium polymer battery (10,000 mAh)
2x USB output (DC 5 V, 1.0 A and DC 5 V, 2.1 A)
1x Micro USB input (DC 5 V, 1.5 A)
led lamp
OLED display with capacity indicator
Power button

Delivery:

Satmessgerät HD 1 Smart
wrist strap
Micro USB cable
F-connection cable (20 cm)
Power Bank
operation manual
