Octagon Satellite Antenna 80cm + Twin LNB + 2x 10m Cable

Octagon satellite antennas are manufactured using advanced, high-precision technology. Sat antennas from Octagon are characterized by their anti-corrosion protection and the polyester coating on both sides, which prevents corrosion in the long term.

Thanks to the excellent workmanship, a long service life of the satellite antenna is guaranteed.

Features
- Easy and quick installation
- wear-resistant components and solid construction
- High quality surface finish with anti-corrosion protection
- Optimal reception quality with high gain
- Click system

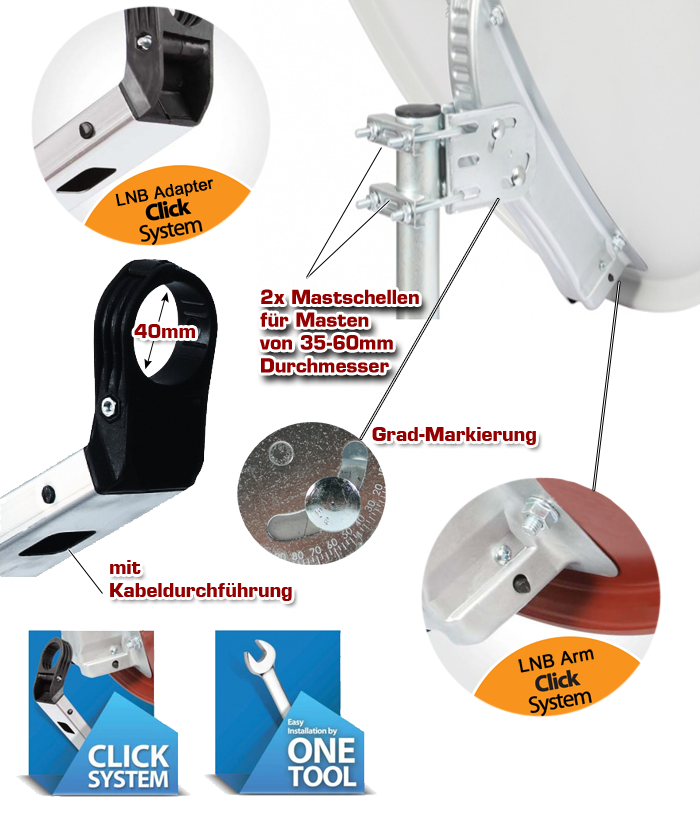

Click System - The simple click assembly, the low weight, the double mast clamps and the very careful elevation scale make this antenna the first choice for both former and professionals.

Through a developed anti-corrosion coating process that includes cleaning, phosphate and polyester powder coating and endurance tests in salt spray chambers. The antennas are tested in special wind tunnels in which they are exposed to different wind speeds from different directions and elevation angles.

Furnishing
- Mirror powder-coated on both sides
- Quick mounting bracket, infinitely adjustable
- Quick LNB arm made of aluminum and cable management
- incl. 2 mounting clamps

Reflector (mirror)
- Type: offset
- Offset angle: 26°
- Reception frequency: 10.7 - 12.75 GHz
- Gain: (Ku band) 38 dB
- Material: zinc phosphate steel
- Top coat: polyester powder coating
- Color: anthracite (RAL 7016)
- Diameter: 80 cm
- LNB bracket: 40 mm
- F/D: 0.6
- LNB arm: aluminum
- Operating temperature: -40 - + 60°
- Wind load: 90 km / h
- Critical wind load: 150 km/h

Back part
- Material galvanized steel
- Top coat: polyester powder coating
- Azimuth orientation: 0° - 360°
- Angle of inclination (elevation): 0 - 90°
- Mast diameter: 35-60 mm
- Weight: 4.1 kg

Hisattel Universal Twin Premium LNB
The Hisattel Universal Twin-LNB is a solid LNB that is ideal for receiving your digital and analog TV programs via satellite. With the help of the twin LNB from Hisattel, up to 2 receivers can be supplied with signals. The LNB is characterized by the minimum noise figure of 0.1db. The housing is the weather, UV, heat, and cold resistant and requires little electricity. The diameter of the feed is 40 mm and the LNB is DVB-S2 compatible.

Technical Info
- Suitable for up to 2 receivers/participants
- Noise figure up to 0.1 dB
- Gain: 60 dB
- Feed diameter: 40 mm
- DVB-S2 compatible
- Freq. 10.70 - 12.75 GHz
- L.o. 9.75 / 10.6 GHz
- Low energy consumption
- Weatherproof, cold, and heat resistant
- High polarization decoupling
- High-Frequency Stability

Coax Satellite Cable
The Vizyon coaxial cables stand for high requirements and combine very good electrical properties with an extremely high degree of shielding. The coaxial cables undergo permanent controls based on international standards such as quality, safety, and the use of environmentally friendly materials in order to meet customer expectations. All of this guarantees top quality and a long service life

Technical Info
- Screen size: 100dB
- Shielding: 2-fold
- Inner conductor: 1.1mm CCS
- Outer jacket: 7.0mm
- Aluminum foil: 2x laminated
- Braid: 2x 48 x 0.12 al
- Impedance: 75 ohms
- RoHS-conform: yes
- Meter imprint on the cable: yes
- Length: 10m

Delivery
1x Octagon Satellite Antenna 80cm Bright with LNB Arm and Mast Attachment (including assembly instructions)
1x Hisattel Universal Twin LNB 0.1dB 3D
2x Coax Satellite Cable 10m
4x F-Connector
