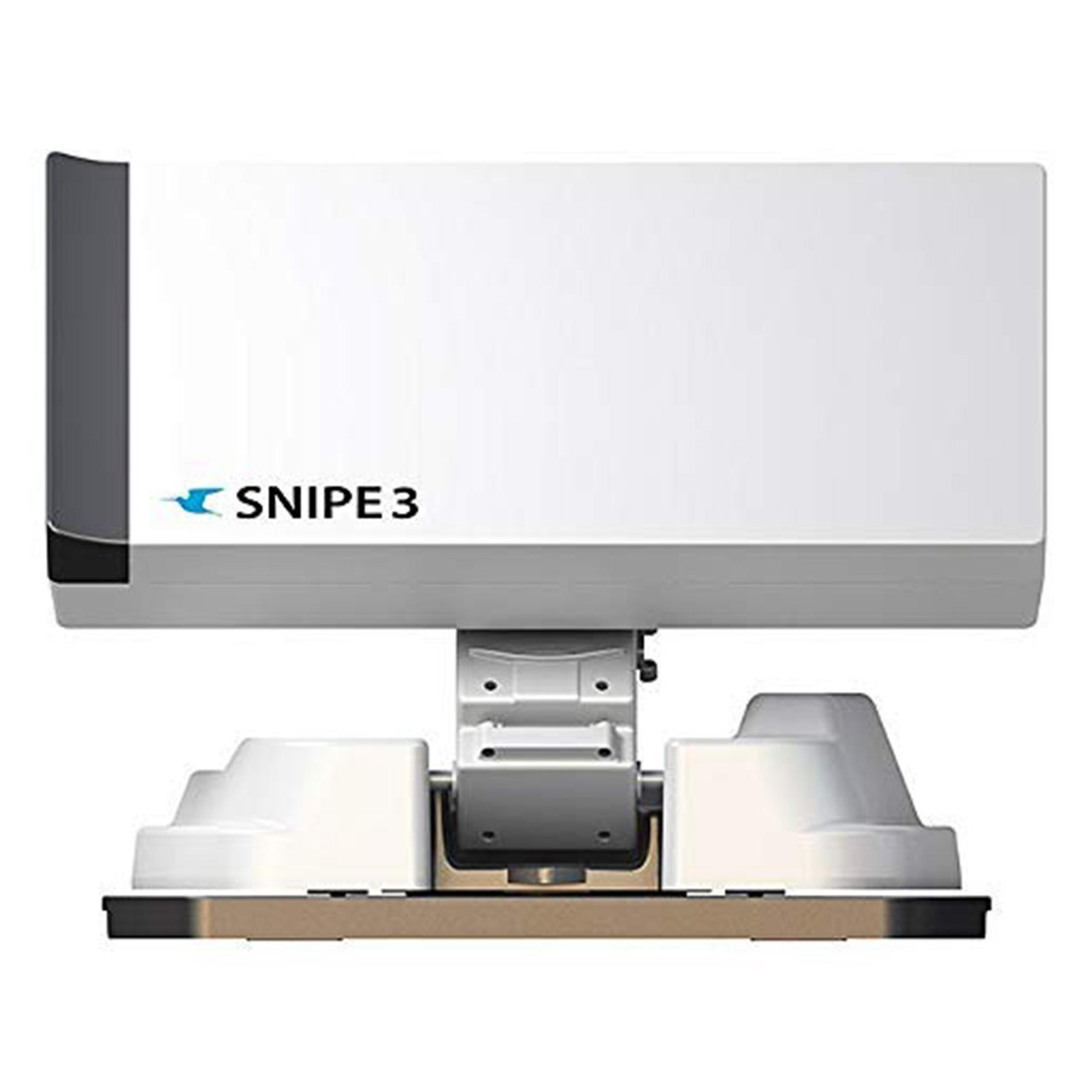

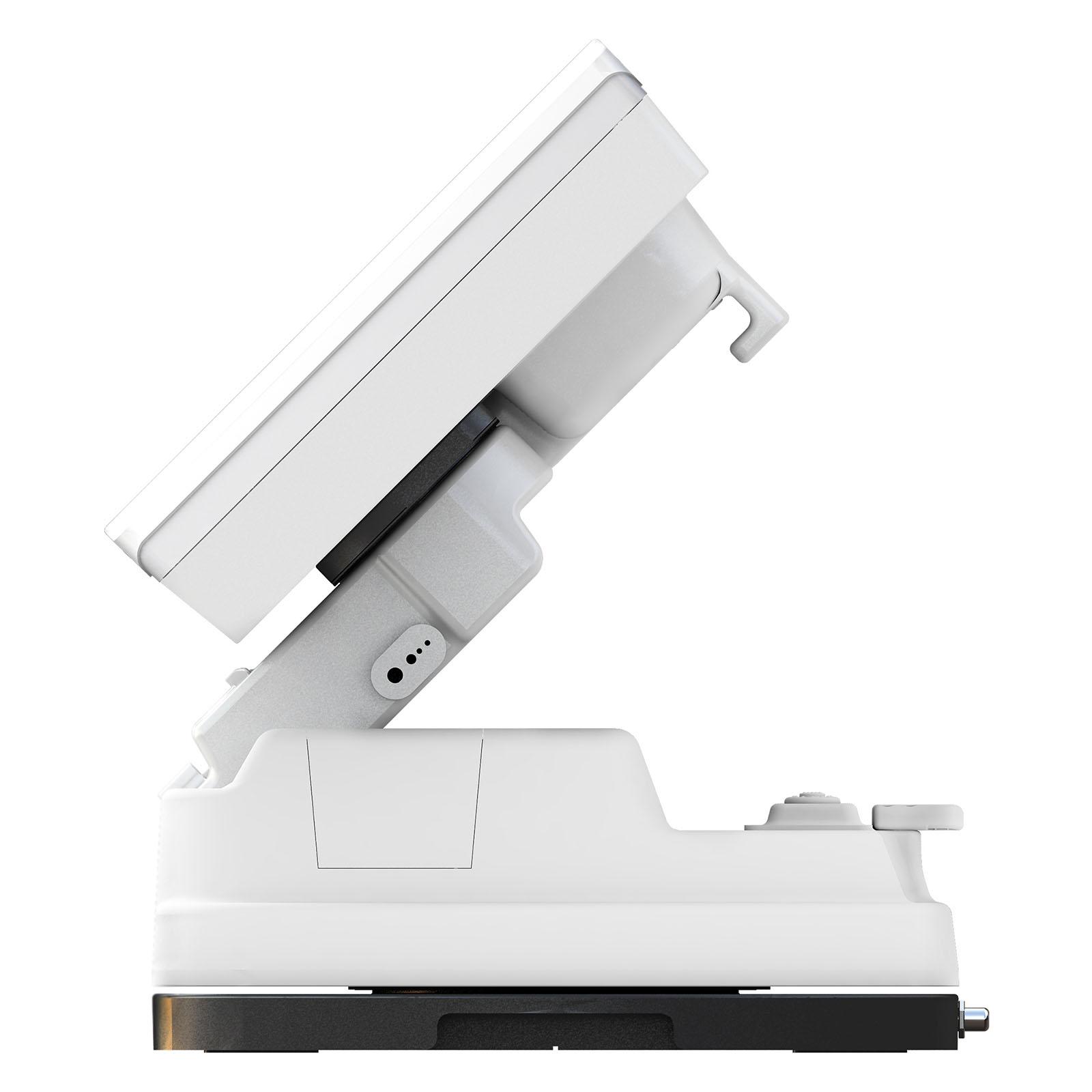

Selfsat Snipe 3 V3 GPS Black Line Twin Full Automatic Satellite Flat Antenna Camping Caravan

Thanks to its compact design, Selfsat Snipe 3 V3 "Black Line" Twin takes up little space - ideal for mounting on the roof of a motorhome. The fully automatic satellite antenna SNIPE 3 offers an unobtrusive installation due to its elegant design. The annoying alignment at a new location is also eliminated. Thanks to the integrated GPS module and electronically controlled drive, the antenna aligns itself automatically at the push of a button. You can receive your usual desired program even when you are traveling, provided that the respective satellite can be reached.

The SNIPE 3 retracts automatically as soon as you switch off the receiver or start the vehicle. Despite its small size, Snipe offers a good reception result. The three-layer antenna structure with wave guide hor array function largely prevents diffuse reflection of the satellite signal. Horizontally and vertically polarized signals are separated from each other and bundled to the LNB. The result: high signal strength at the LNB.

Tedious antenna alignment is no longer necessary
- Receive the desired program on the way: automatic alignment to the desired satellite at the push of a button
- 10 pre-programmed satellites (Turksat, Astra 2, Astra 3, Astra 1, Hotbird, Eutelsat 9, Astra 4, Thor, Eutelsat 5W, Hispasat). In addition to the pre-programmed satellites, 2 more satellites can be added.
- Automatic adjustment of elevation, azimuth and skew by antenna drive
- Receiving power comparable to a conventional 60cm mirror
- Very practical for motorhomes: ultra-flat construction
- Suitable for mobile use as well as for permanent roof mounting
- Suitable for continuous use
- Waterproof construction with drainage system
- World's smallest and most powerful automatic satellite antenna
- With Twin LNB for 2 participant (receiver / TV)

Changes to the SNIPE 3 compared to the previous model SNIPE 2

New Antenna with a New Design:
- The new design ensures an even better reception

Improved Durability:
- Ultra waterproof and with drainage system
- Light and rustproof thanks to reinforced plastic material
- Built-in high voltage protection circuit to avoid short circuits on the LNB

Advanced Technology:
- Support of DiSEqC 1.0 / 1.1
- Car satellite switch with TV channel control
- Move to the HOME position by switching off the receiver / TV

New Additional Functions:
- Up to 12 preset satellites
- Optimal incline setting and quick search with GPS
- Automatic retraction to the HOME position when the vehicle starts

Solid Mechanics:
- Precise alignment with die-cast aluminum gear housing
- A fixed lock protects the antenna from vibrations while driving
- The durability of the gearbox has been greatly improved through the use of die-cast aluminum

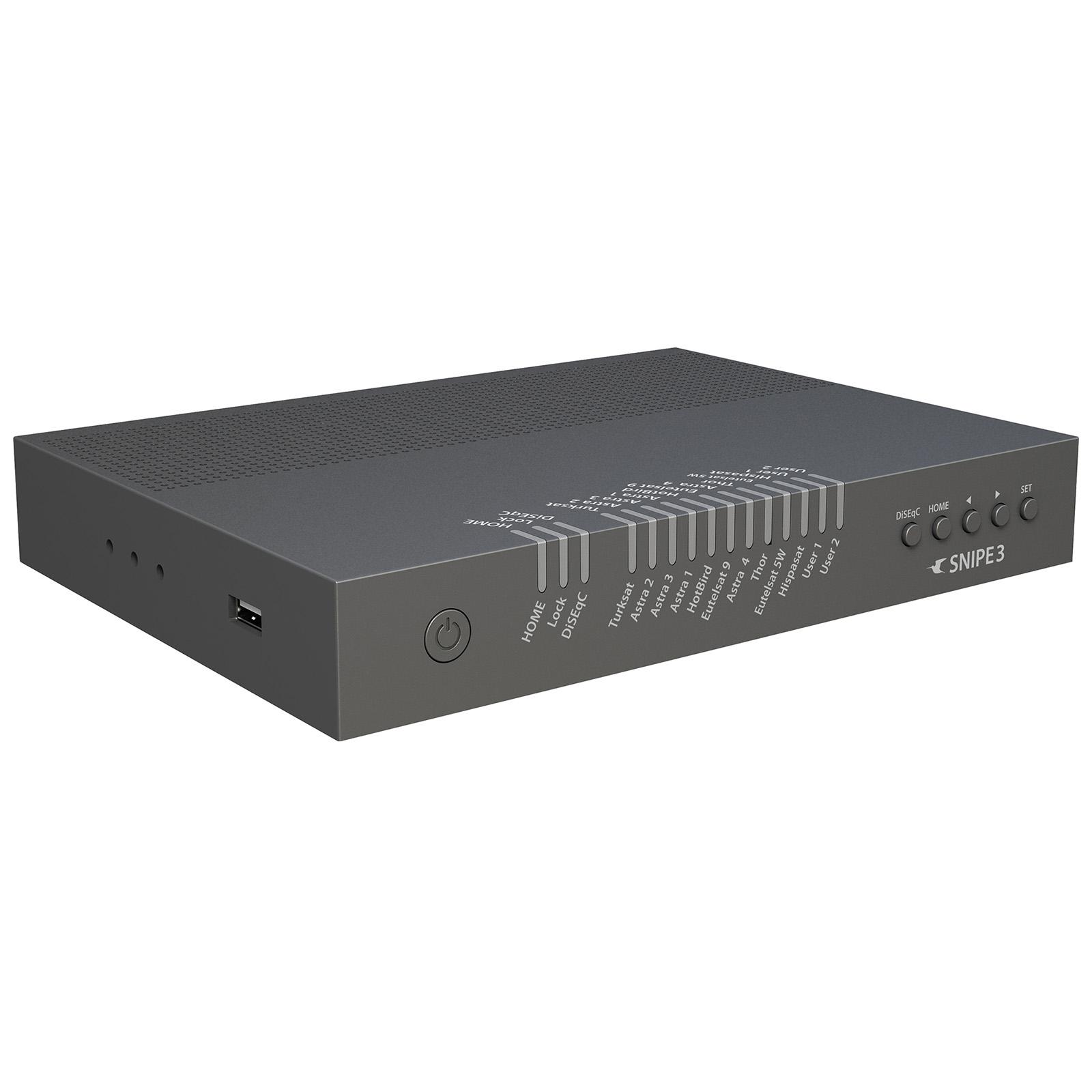

New Controller:
- Smart TP management with storage of 12 transponders (TPs)
- Automatic removal of outdated TP and automatic update of new TP
- The main control buttons directly on the controller offer simple operation and maintenance of the device
- Easy upgrade procedure via USB

New Construction:
- No mechanical damage when lifting the antenna. Improved home position including locking system ensures a firm and secure hold while driving.

New Motorization:
- The new powerful motor, reinforced with an 18: 1 gear ratio, offers high torque and ensures less noise during alignment.

Technical Informations:
- Gain: 33.7 dBi at 12.7 GHz
- Min. EIRP: 50 dBw
- LNB output: 2 participant
- LNB input frequency: 10.7 ~ 12.75 GHz
- LNB output frequency: 950 ~ 2.150 MHz
- LNB L.O. Frequency: 9.75 / 10.6 GHz
- Polarization: vertical & horizontal
- DiseqC: 1.0 / 1.1
- Satellite search time: max. 180s
- Supply voltage: 12V DC
- Power consumption: 30W (in operation)
- Operating temperature: -30 to +60 ° C
- Skew: automatic, -45 ° to + 45 °
- Elevation: automatic, 15-90 °
- Azimuth: automatic, 360 °
- Special features: ultra-flat, 10 satellites preprogrammed
- Dimensions (W x H x D): 515 x 355 x 201 mm
- Weight: 10.3 kg (without case, mounting plate and accessories)

Delivery:
1x Selfsat Snipe 3 "Black Line" Twin Satellite Antenna
1x Control Unit
1x Controller Bracket
1x Mounting Plate
1x 12 Volt Vehicle Connection Cable
1x Control Cable 7m
1x Coaxial Cable 7m
1x Coaxial Cable 1m
1x Allen Key
1x Roof Duct
1x Cable Gland
1x Instruction Manual

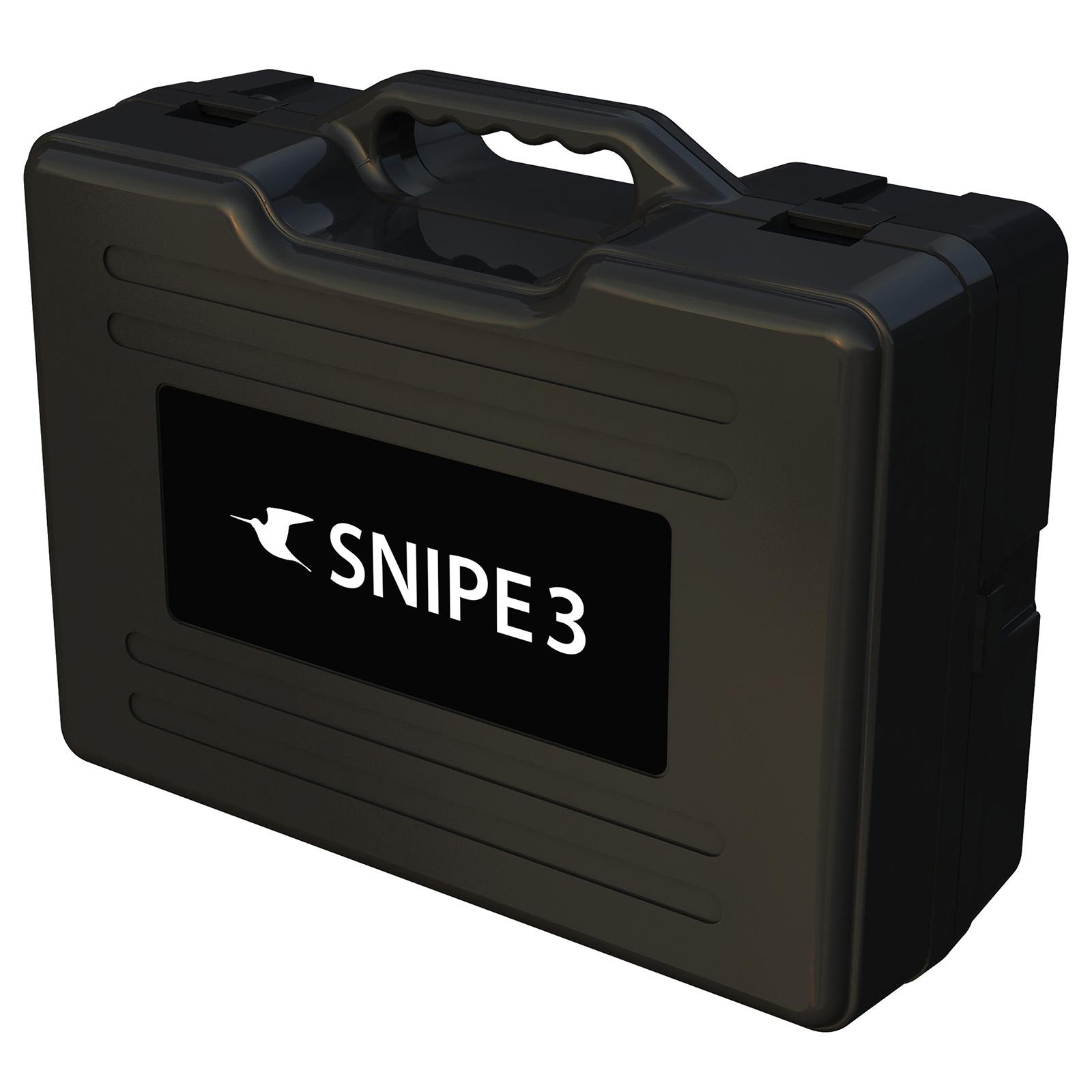

1x Plastic Case
- Screw Sets
- Base Pads
