Selfsat Snipe 3 V3 R Twin with Remote Control Full Automatic Flat Satellite Camping Antenna for 2 Participant

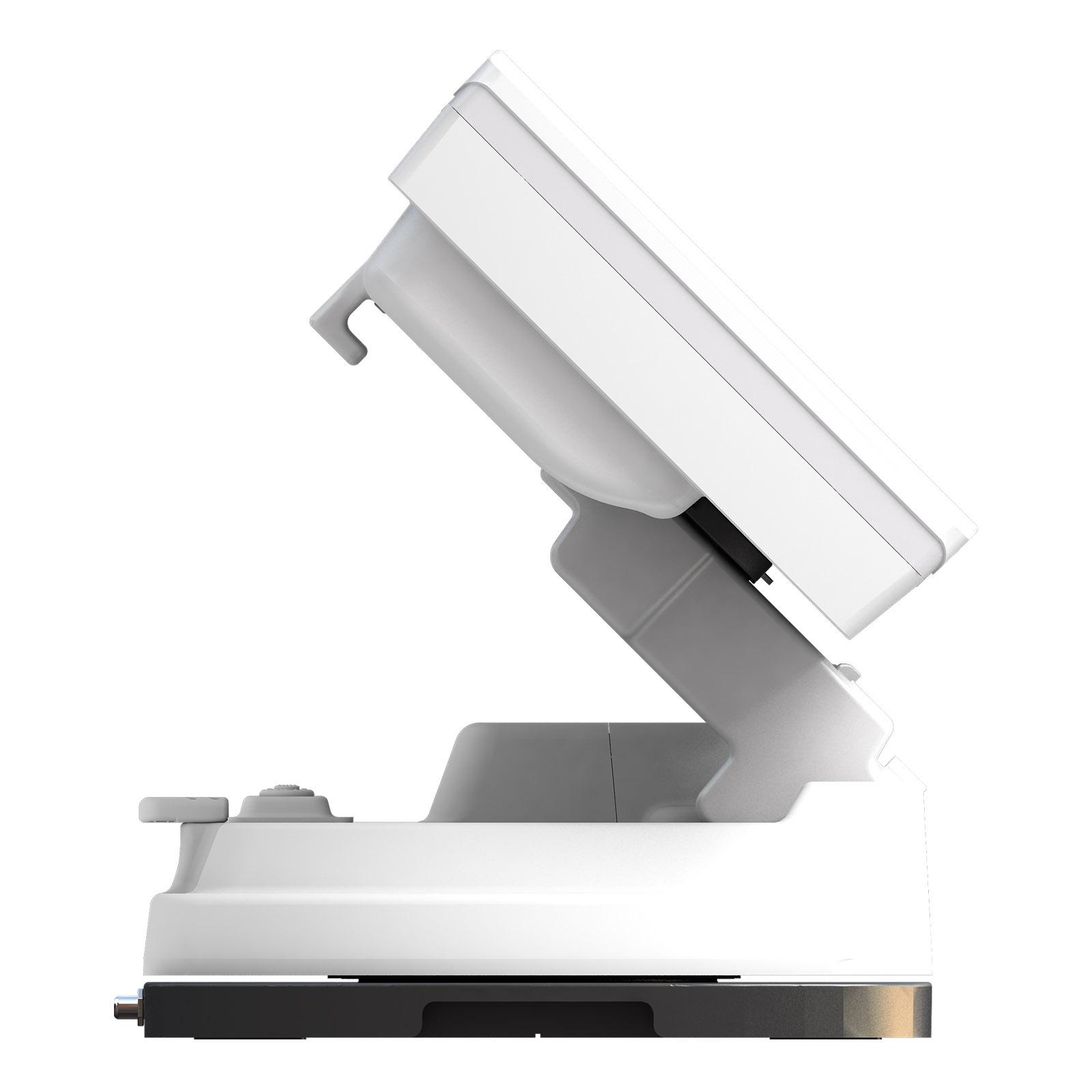

The compact design means that Selfsat Snipe 3 R Twin takes up little space - ideal for mounting on the roof of a motorhome. The fully automatic satellite antenna SNIPE 3 R offers an inconspicuous installation due to its elegant design.

Selfsat Snipe 3 R offers the world's first remote controlled automatic flat antenna. Align your antenna comfortably to different positions without having to walk to the controller. Despite its small size, Snipe offers a good reception result. The three-layer antenna structure with wave guide hor array function largely prevents diffuse reflection of the satellite signal. Horizontally and vertically polarized signals are separated from each other and bundled to the LNB. The result: high signal strength at the LNB.

Features
- 10 pre-programmed satellites. In addition to the pre-programmed satellites, 2 more satellites can be added.
- Preset satellites for Europe
- Smart transponder management with the possibility of storing 12 transponders with the supplied controller
- 4K UHD programs can be played.
- Built-in high voltage protection circuit
- Ultra waterproof and drainage system
- Light and rustproof thanks to reinforced plastic
- With Twin LNB for 2 participant (receiver / TV)

Changes to the SNIPE 3 compared to the previous model SNIPE 2

New Antenna with a New Design:
- The new design ensures an even better reception

Improved Durability:
- Ultra waterproof and with drainage system
- Light and rustproof thanks to reinforced plastic material
- Built-in high voltage protection circuit to avoid short circuits on the LNB

Advanced Technology:
- Support of DiSEqC 1.0 / 1.1
- Car satellite switch with TV channel control
- Move to the HOME position by switching off the receiver / TV

New Additional Functions:
- Up to 12 preset satellites
- Optimal incline setting and quick search with GPS
- Automatic retraction to the HOME position when the vehicle starts

Solid Mechanics:
- Precise alignment with die-cast aluminum gear housing
- A fixed lock protects the antenna from vibrations while driving
- The durability of the gearbox has been greatly improved through the use of die-cast aluminum

New Controller:
- Smart TP management with storage of 12 transponders (TPs)
- Automatic removal of outdated TP and automatic update of new TP
- The main control buttons directly on the controller offer simple operation and maintenance of the device
- Easy upgrade procedure via USB

New Construction:
- No mechanical damage when lifting the antenna. Improved home position including locking system ensures a firm and secure hold while driving.

New Motorization:
- The new powerful motor, reinforced with an 18: 1 gear ratio, offers high torque and ensures less noise during alignment.

Technical Informations:
- Min. EIRP: 50 dBw
- LNB output: 2
- LNB output frequency: 950 ~ 2.150 MHz
- LNB L.O. Frequency: 9.75 / 10.6 GHz
- Polarization: vertical & horizontal
- DiseqC: 1.0 / 1.1
- Supply voltage: 12V DC
- Power consumption: 30W (in operation)
- Operating temperature: -30 to +60 ° C
- Skew: automatic, -45 ° to + 45 °
- Elevation: automatic, 15-90 °
- Azimuth: automatic, 360 °
- - Satellite search time: max. 180s
- Weight (ANT) 10.1 kg / (RCU) 23 g
- Dimensions ANT (W x H x D): 515 x 355 x 192 mm
- Dimensions RCU (W x H x D): 34 x 116 x 8 mm

Delivery:

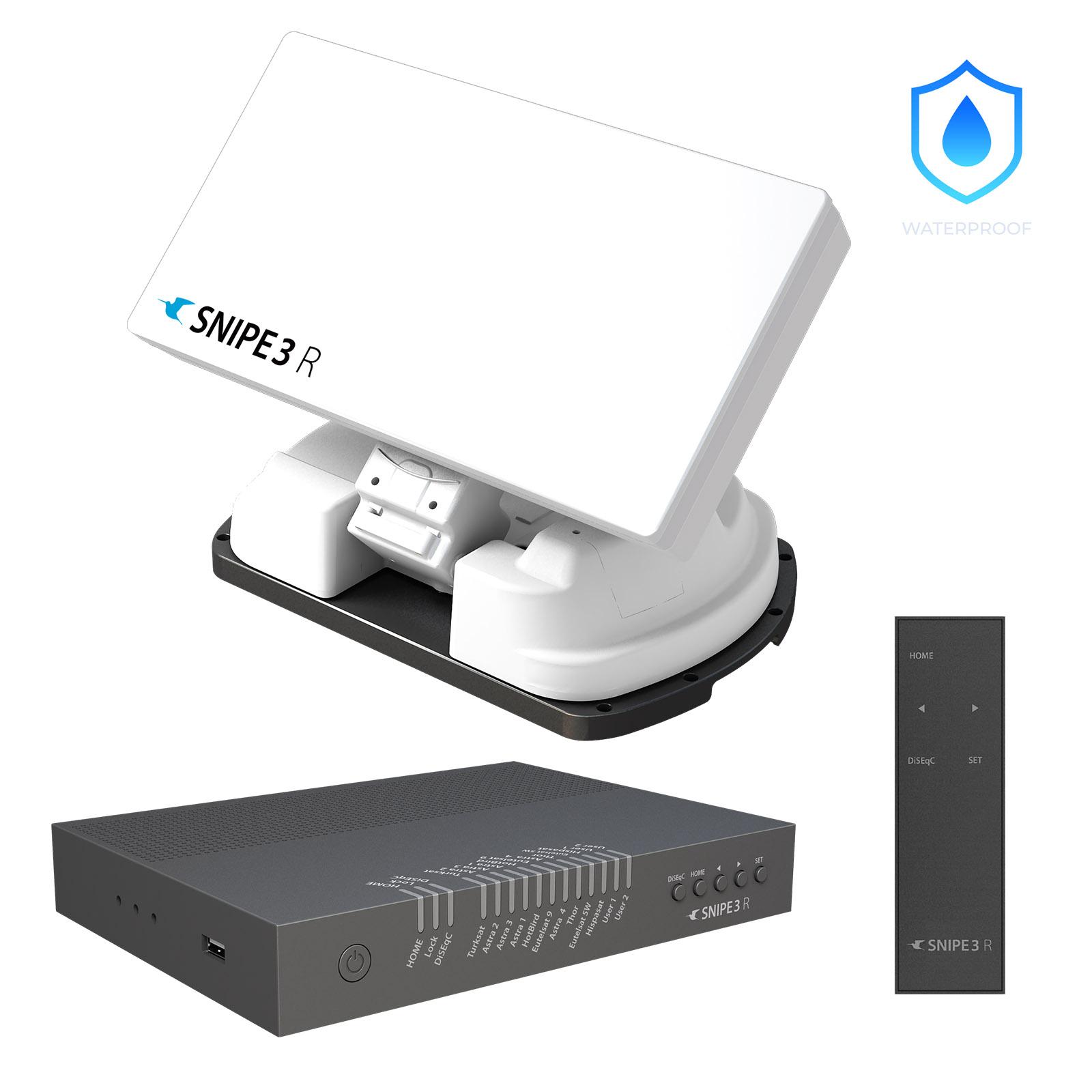

1x Selfsat Snipe 3 R Twin Satellite Antenna
1x Controller SNIPE 3 R
1x Remote Control
1x Controller Bracket
1x Controller Cable (black) 7m
1x Antenna Cable (gray) 7m
1x Cigarette Lighter Cable
1x STB Cable
1x Mounting Plate
1x Base Cushion
1x Carrying Case
1x Cable Holder
1x Cable Gland
1x Allen Key
1x Instruction Manual
1x Fastening Screws
